Figure 27.23 - Congruence.

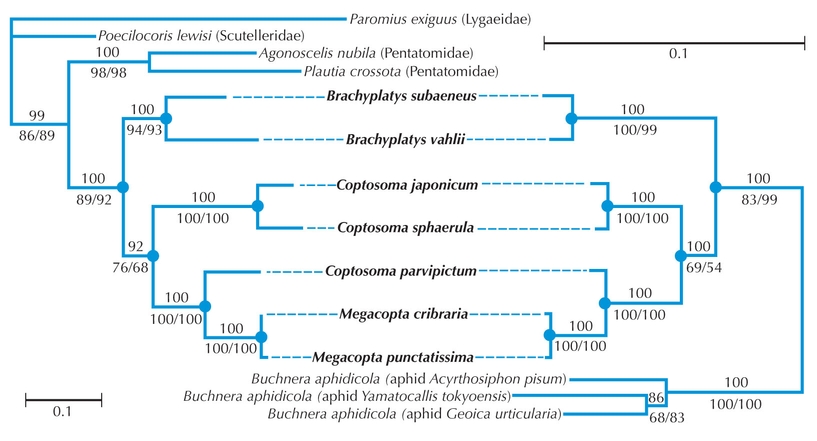

Figure 27.23. Congruence. The phylogeny of plataspid stinkbugs (left) and their bacterial endosymbionts (right) is compared, showing that the topology of the trees is identical for the overlapping organisms. Each of the nodes is labeled with posterior probabilities in the Bayesian analysis (above) and bootstrap probabilities as MP (maximum parsimony) analysis/ML (maximum likelihood) analysis (below). (Redrawn from Hosokawa T. 2006. PLoS Biol. 4: e337, Fig. 5.)
