Figure P17.9

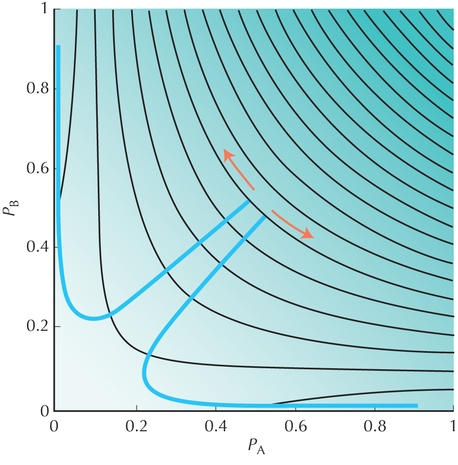

Figure P17.9. Mean fitness as a function of allele frequencies pA, pB. Contours are at intervals of = 0.05 and run from 0 at top right (dark) up to 1.1 at top left and bottom right. (Blue lines) Evolution of populations that start with roughly equal allele frequencies (center), and low fitness ( = 0.8) up to fixation for either AP (bottom right) or BP (top left), with mean fitness = 1.1.
