Chapter 19 Notes: Measuring Selection: Figure WN19.4 - A simulation of genetic variability along 40 kb of genome soon after fixation of a favorable mutation at the center (i.e., 20 kb).

Figure WN19.4 - A simulation of genetic variability along 40 kb of genome soon after fixation of a favorable mutation at the center (i.e., 20 kb).

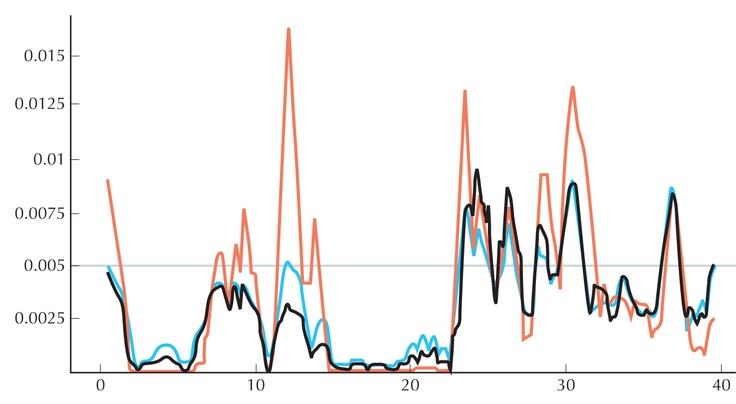

Figure WN19.4. A simulation of genetic variability along 40 kb of genome soon after fixation of a favorable mutation at the center (i.e., 20 kb). Three measures of genetic variability are shown: θ_π (black), θ_W (blue), and θ_H (red). Under the neutral theory, these are expected to be the same and, for this simulation, to equal 0.005. (Redrawn from Fig. 3d in Kim and Stephan 2002.)
